Foil emitter and insulation in one, can be configured for standard battens, acoustic batten and joisted floors.

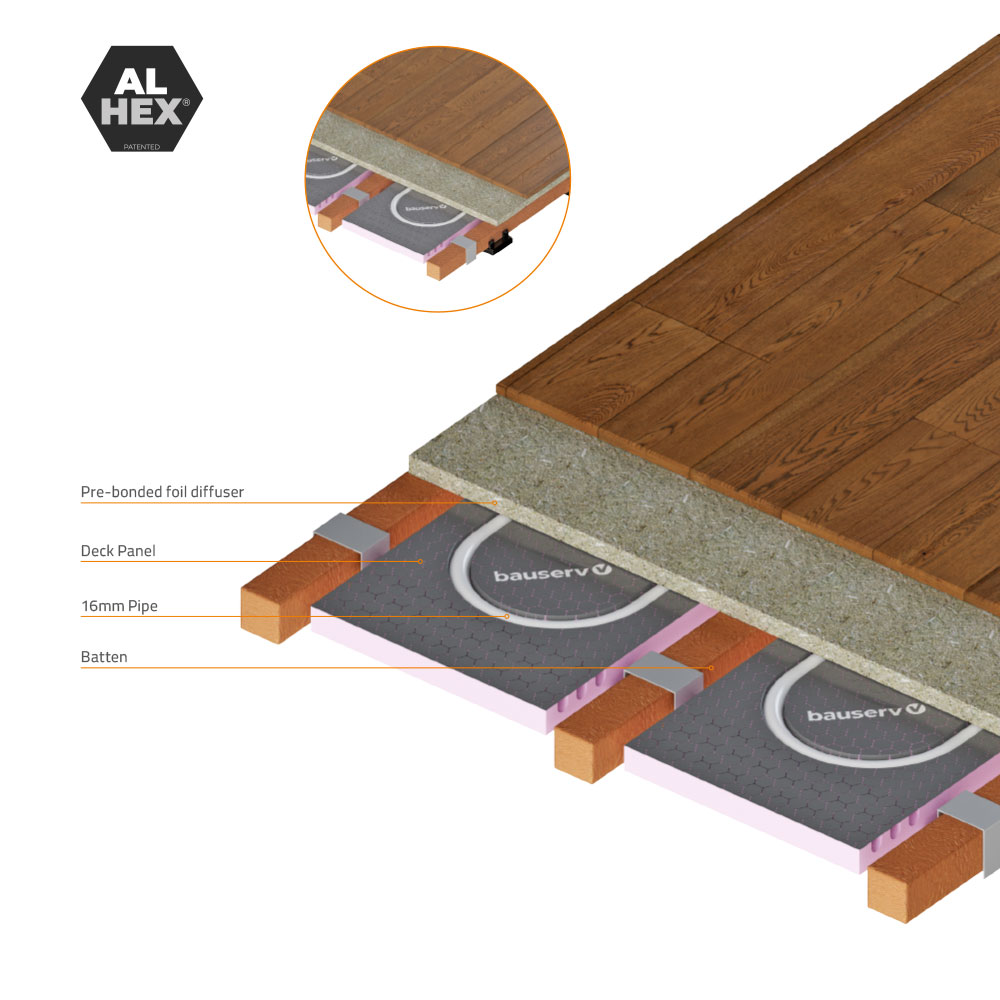

Foiled insulation panels with integrated UFH.  Featuring a high compression strength the panels are designed between timber battens.

Panel thickness:

Weight with water:
From 2kg/m2

Suitable for:
Suspended timber or batten floors with centres up to 600mm

Pipe centres:
200mm using 16mm pipe

100 µm with lined channel or AL HEX 200 µm (optional)

1200mm x 300+mm

Technical Product Guide
