For low build up constructions with finished floor deck included at 18mm overall build up.

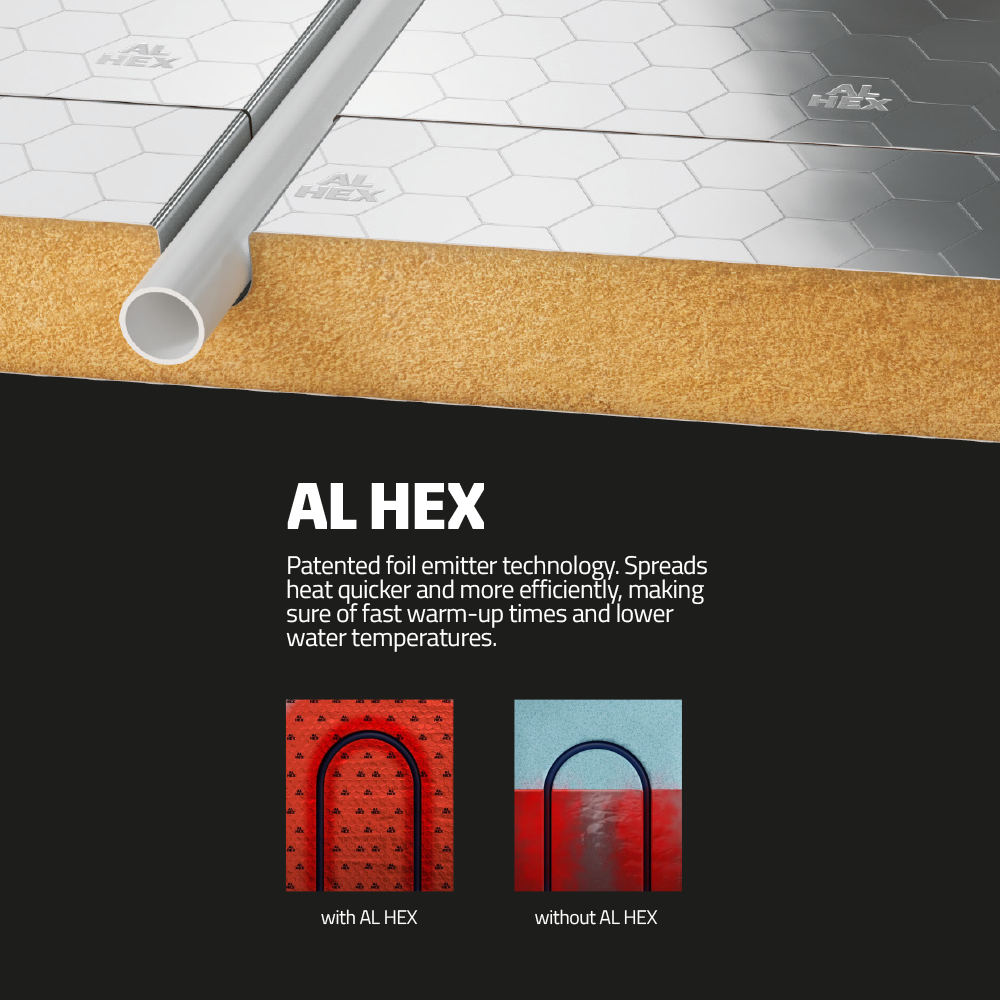

Low build-up system that encapsulates the pipe between cover panel and an AL HEX foiled low profile deck panel. Each panel interlocks around the pipe providing excellent heat transfer into the floor. Easy to install over the existing floor and being as thin as possible.

Panel thickness:
18mm (inc a 6mm Woodfibre cover panel)
20mm (inc a 8mm Cement Particle board cover panel)

Weight with water:

Suitable for:
Low build up applications (laid over existing insulated floors)

Pipe centres:
150mm using 12mm pipe

Cover Panel: 1200mm x 600mm
Deck Panel: 1200mm x 600mm
