BAUFLOOR

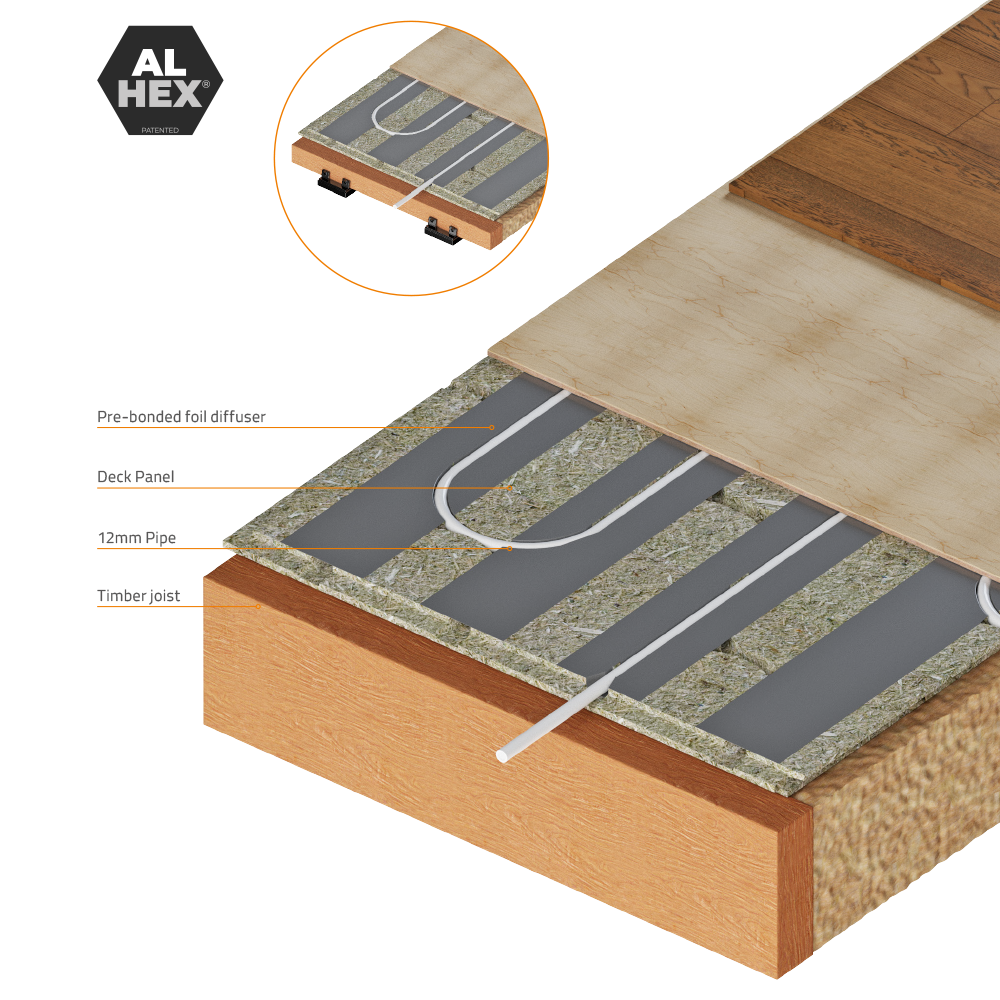

For timber joist and batten constructions with floor deck and heating in one panel.

Combines a structural floor and underfloor heating system which replaces the floor deck used in timber constructions on a joisted or batten floor. Acoustic insulation can be integrated where sound reduction is important. Requires 6mm ply by others to finish the floor ready to accept a floor finish.

This product features AL HEX as an option. Patented foil emitter technology. Spreads heat quicker and more efficiently, making sure of fast warm-up times and lower water temperatures.

Panel thickness:
22mm

Weight with water:
Approx 20kg/m2

Suitable for:

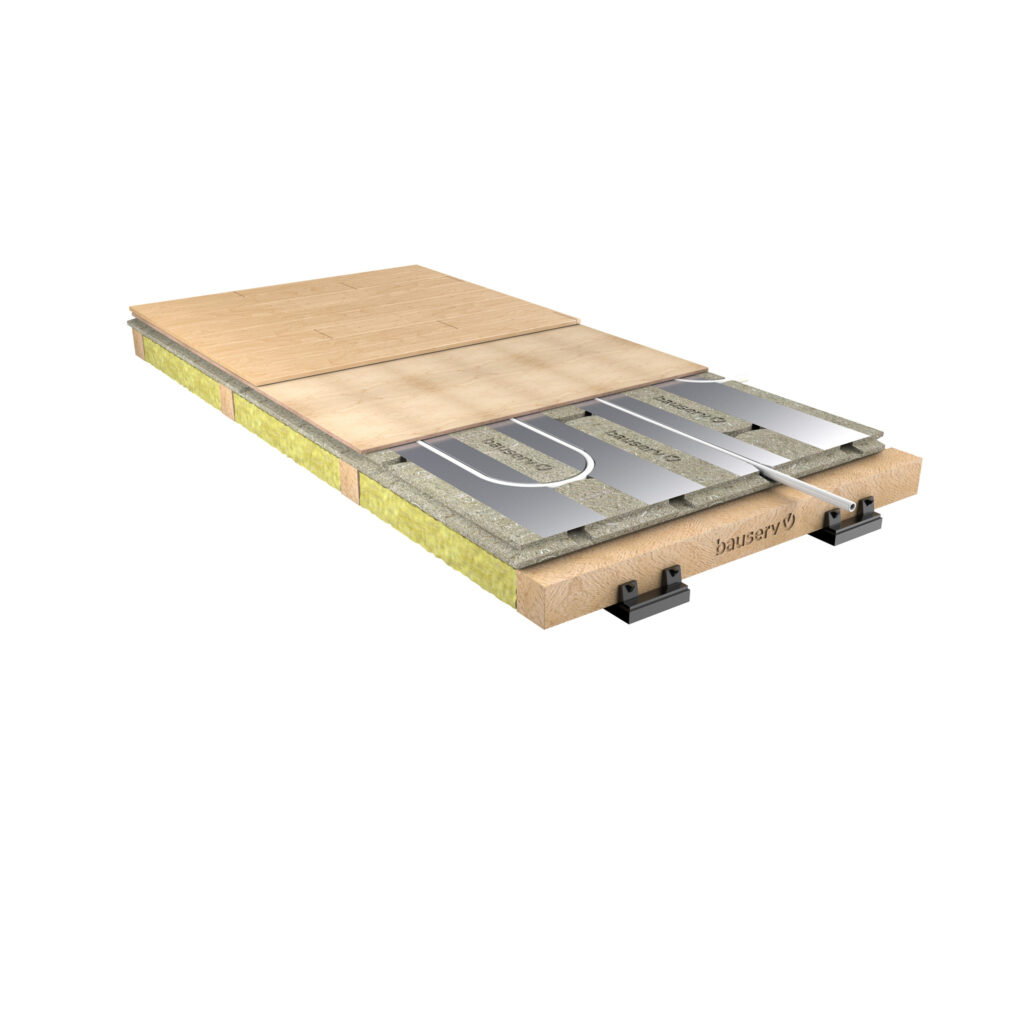

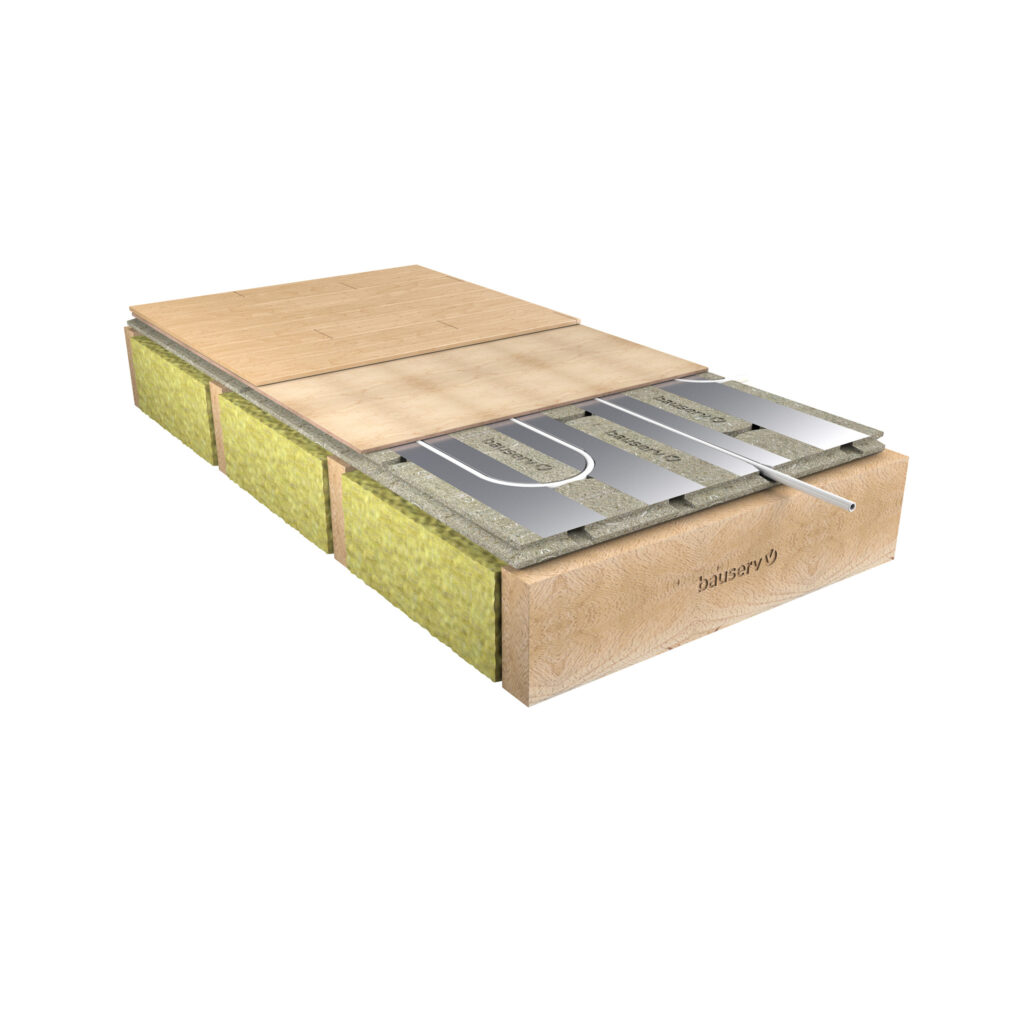

Suspended timber or batten floors with centres up to 600mm

Pipe centres:
150mm using 12mm pipe

Dimensions:
2400mm x 600mm

Technical Product Guide
